Everything you should know about charging an electric car

1. Are electric cars worth it?

Benefits of electric cars

As a society, electric vehicles can help us reduce carbon emissions and build a more sustainable future. But as drivers, EVs provide us far more than the ability to reduce our carbon footprint.

More cost savings, a superior performance, & a smaller carbon footprint

For one, EVs offer a superior driving experience; instant torque and smooth handling (thanks to a low centre of gravity). And let’s be honest, the convenience to charge wherever you park is a perk you can get used to faster than your average charging session. Next to this, EVs require a lot less maintenance than conventional ICE vehicles.

There are many unanswered questions that (potential) new EV drivers have about EV charging.

For those who are considering buying their first electric car, or those who just bought one, driving an EV—or more specifically charging one—is a completely new experience.

On this page, we intend to tell you everything you need to know about EV charging and clear up the most common questions so that you can feel more confident about switching to electric mobility.

2. Electric vehicles vs fuel

EV charging is one of the reasons you should get an electric car

Whether you’re in the market for your first electric car or you're considering upgrading, it’s only logical that you’re comparing your options. One of the major differences between owning an EV and a traditional vehicle with an internal combustion engine (ICE) is how you fill your proverbial tank. Many find switching from putting fuel in a tank to charging a battery with electricity the scariest transition; what if you run out in the middle of nowhere?

But in reality, EV range anxiety has as much to do with psychology as it does with the range of electric cars (or the availability of charging points)

Did you know that the majority of current EV drivers don’t encounter any problems at all when it comes to charging their vehicle? In fact, being able to charge your battery is one of the best things about driving an electric car.

The biggest difference between driving petrol or diesel and electric is that when you’re driving electric, you can charge anywhere.

EV charging locations

It may sound obvious, but with a fossil-fuel powered vehicle, you can pretty much only fill up your tank at a petrol station. With an electric car however, you can charge your vehicle pretty much anywhere: at home, at the office, at a restaurant, whilst doing your shopping, whilst parked on the street, or you can top-off your car’s battery at a (no-longer aptly named) petrol station.

So the decision of getting an electric car and thinking about how to charge it go hand in hand. However, because it works a little differently than what we’re all familiar with, it can get quite confusing, especially because there are many new definitions you have to wrap your head around.

EV charging explained: why is the terminology so complicated?

As a relatively young, scattered, and rapidly-growing industry, EV charging terminology is all over the place. There are different charging levels, cable modes, plug types (which differ depending on where you are), there are different flows of charge (AC or DC), a wide range of battery capacity possibilities, estimated actual range, distance to empty, power output of a charging station, different charging speeds and a bunch of terms that are similar. For example, how fast is fast charging really? And what is rapid or even ultra-fast charging?

If you’re thinking about buying (or have just bought) an electric car, then it’s understandable that all this new information can feel a bit overwhelming.

Read on to learn everything you need to know about EV charging so that you can start your transition towards electric mobility well informed.

3. Where to charge an electric car

EV charging locations

Generally speaking, wherever you can park your car is a potential charging location. So, you can imagine the places you can charge your car are as diverse as today’s available EV models.

As the world is shifting towards electric mobility, the need for a suitable charging infrastructure network has never been more prevalent. As such, governments and cities across the globe are creating legislation and incentifying the placement of charging points, while more and more businesses are tapping into this new market.

The number of publicly available charging points is steadily increasing and will continue to do so to keep pace with the rapidly growing adoption of electric vehicles across the world.

So in the future, as charging stations become more common fixtures on streets the world over, there will be charging points everywhere, but what are the five most popular places to charge your car today?

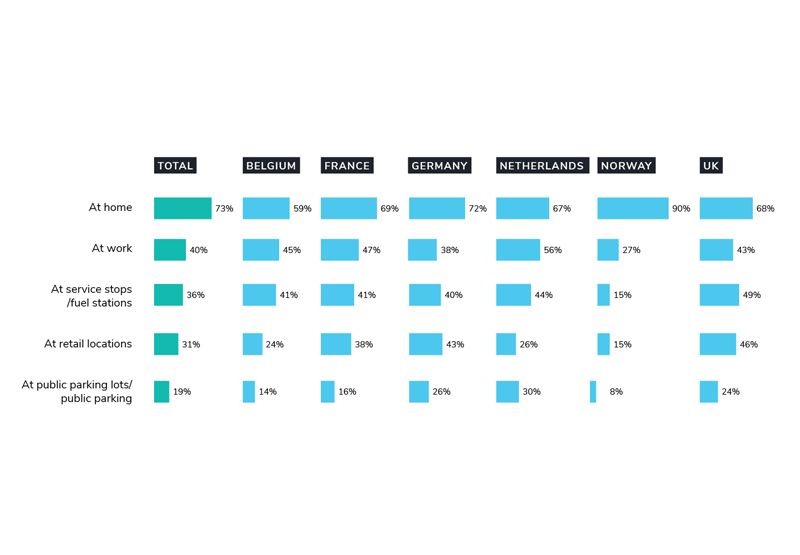

The five most-popular car charging locations

According to our Mobility Monitor report, where we interviewed thousands of EV drivers (and potential EV drivers) across Europe, these are the five most popular places to charge an electric car in the UK:

1. Electric car charging at home

With 68 percent, charging at home takes the crown of being the most popular compared to other charging locations. Not surprising, as charging at home conveniently enables electric car drivers to wake up to a fully charged vehicle every day, and ensures that they do not pay a penny more than the electricity they actually consume against the household’s electricity price.

2. EV charging at motorway services and petrol stations

Charging at home sounds nice, but what if you’re on the road and looking for a quick top-up? Many fuel retailers and service stations are starting to provide fast charging (also known as level 3 or DC charging) services, with just about half of current EV drivers already charging their car up there regularly. Plus, while charging at home is convenient whilst you do other things, it can take hours before the battery is recharged. However, with fast charging stations, you can charge your battery a lot quicker (think in minutes, not hours) and be back on the road in no time.

3. Retail locations or hotels with electric car charging points

Just under half of EV drivers also charge their car at retail locations—if the service is available to them. Think of the convenience: imagine watching a film, having dinner, meeting a friend for a coffee, or even doing some shopping and returning to a vehicle with more charge than you left it with. More and more retail locations are discovering the growing need for this service and are installing charging points to meet the demand and acquire new customers.

4. Electric car charging at work

In the UK 43 percent of current EV drivers already regularly charge their car at the workplace and many more have stated that they would love to be able to do so, and who wouldn’t? I mean, driving to the office, focusing on your work during business hours, and driving home again after the day is done in a fully charged vehicle sounds super convenient. As a result, more and more workplaces are starting to install EV charging points as part of a sustainability initiative, employee engagement strategies, and to satisfy their EV-driving visitors and partners.

5. Public charging stations

Each day, more public charging stations are popping up as cities and local councils are investing heavily in charging infrastructure. Today, 24 percent of EV drivers in the UK already gladly make use of them, and with sales of electric cars rising, so will the number of available public charging points in our cities.

4. Different types of chargers

EV charging levels and all types of chargers explained

Charging can be categorised in multiple ways. The most common way to think about EV charging is in terms of charging levels. There are three levels of EV charging: Level 1, Level 2, and Level 3—and generally speaking, the higher the level, the higher the power output and the faster your new vehicle will charge.

Generally speaking, the higher the level, the higher the power output and the faster your new vehicle will charge.

However, charging times are always dependent on a combination between the type of battery and charging capacity of the car, and the power output of the charging station.

Level 1 charger

Level 1 charging is when you plug your electric car into the socket with a standard AC power plug. As a standard household outlet only delivers a maximum of 2.3 kW, charging via a Level 1 charger is the slowest way to charge an EV—giving only 4 to 5 miles of range per hour. As there is no communication between the power outlet and the vehicle, this method is not only slow, but it can also be dangerous for your safety and your vehicle. As such, we don’t recommend relying on Level 1 charging to charge your vehicle except for in emergency circumstances.

Level 2 charger

A Level 2 charger is any standard AC charging point that you may find mounted to a wall, on a pole, or standing in the ground. Level 2 charging stations commonly deliver anywhere between 3.4 kW - 22 kW and are usually found at residential, public parking, businesses, and commercial locations. At the maximum output of 22 kW, an hour’s charging will provide roughly 75 miles to your battery’s range. This is a lot faster than Level 1 charging. Because of this reason, combined with a range of intelligent functionalities, smart connectivity options, and a range of safety features that Level 2 chargers have to offer, many EV drivers invest in an AC charging point for home.

Level 3 charging station (DC fast charger)

Also known as DC or fast charging, Level 3 charging uses direct current (DC) to charge a vehicle’s battery directly, bypassing the AC/DC onboard converter. This allows Level 3 chargers to deliver DC power directly to the battery. As a result, Level 3 charging stations can deliver more power, faster, making them ideal for short-stop locations like service stations and fleet depots. Charging times vary between different vehicles and power outputs, however, generally speaking, Level 3 chargers can charge a vehicle in minutes versus hours for Level 2 or days for Level 1 charging stations.

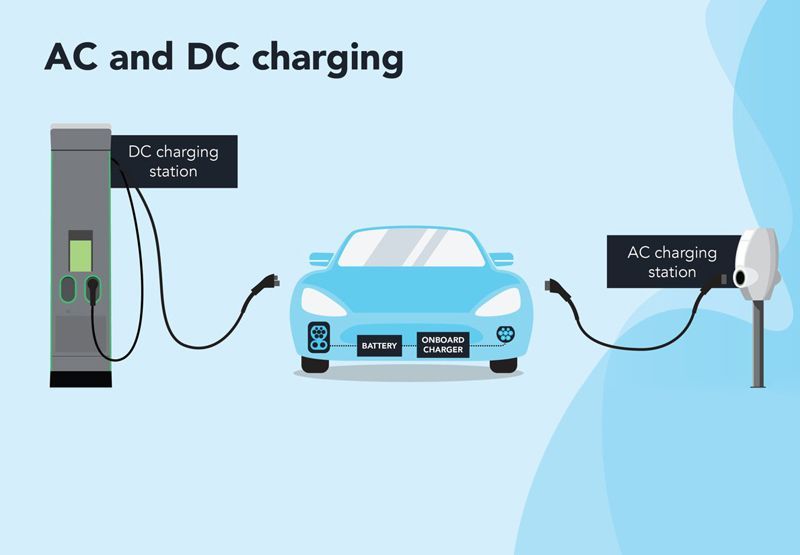

AC vs DC power

So, the higher the level, the higher the speed. All clear so far, right? But, when is something AC and when DC, and why is DC so much faster?

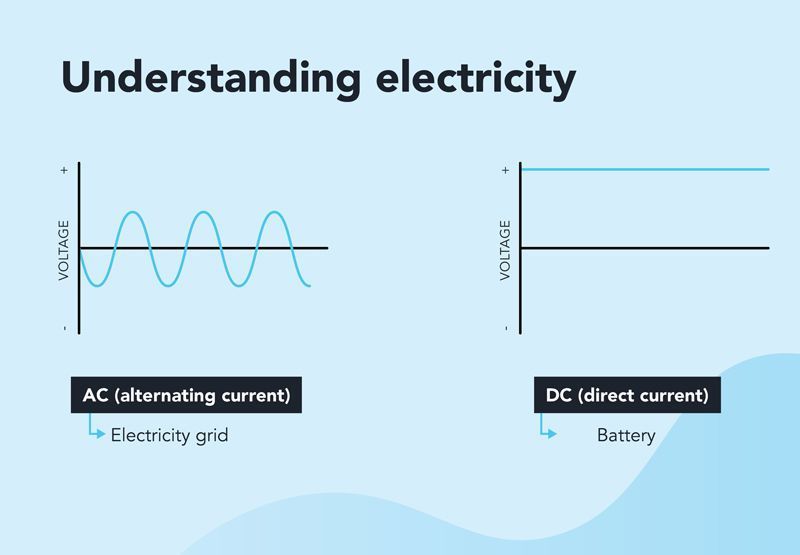

AC vs DC current

AC stands for “Alternating Current” and it, well, alternates as it changes direction periodically, DC stands for “Direct Current” and flows in a straight line. Without getting too technical, AC can be transported over long distances more efficiently, so this is why it flows out of your socket at your home and office. However, batteries in general are only able to store DC power.

You may have never realised it, but every time you charge your phone (or any other electrical device for that matter), the charger converts the AC power it receives from the grid into DC power to charge the battery in your device.

How do electric cars charge?

The same principle goes for electric cars. The difference between AC and DC charging all depends on whether there is a conversion process or not. No matter how you charge it though, at the end of the day, the battery in the car is always charged with DC.

With a DC charger, the direct current can flow into the battery directly, while with an AC charger, the electricity has to be converted to DC first. This process will always take more time as the onboard charger can only take so much electricity at a time.

5. How long does it take to charge an electric car?

What is the average time to charge an electric car and what affects charging speed?

Once you’ve got your head around where to charge, what the different levels of charging are, and have a basic understanding of the difference between AC and DC, you can now better understand the answer to the number one question: “Okay, so how long will it take to charge my new electric car?”

Level 1 (AC): 10hr - 40hr

Level 2 (AC): 1hr - 20hr

Level 3 (DC): 7min - 2hr

Next to the power output of the charging station, how long it will take precisely will depend on your vehicle’s battery size, charging capacity, as well as a number of other situational factors.

To give you a somewhat accurate approximation, we’ve added an overview of how long it takes to charge electric cars below. This overview looks at four average battery sizes and a few different charging power outputs. For a more detailed overview of a specific model, you can have a look at our electric car specifications page.

Electric car charging times

*Approximate time to charge the battery from 20 percent to 80 percent state of charge (SoC).
For illustrative purposes only: Does not reflect exact charging times, some vehicles will not be able to handle certain power inputs and/or do not support fast charging.

What affects charging speed?

Electric car battery

The bigger the battery, the longer it will take to charge. Simple, right? The state of charge of an EV's battery is measured in kilowatt-hours (kWh), which is similar to a litre or a gallon but for electricity, and each kWh equals the amount of energy you would use to run a 1,000-watt appliance for an hour. The vast majority of electric passenger vehicle batteries today can hold somewhere between 25 and 100 kWh when fully charged.

Charging capacity of the vehicle

The power output which a vehicle accepts differs from vehicle to vehicle and can even vary depending on the model of the car. Measured in kW, the charging capacity is shown for both AC charging and DC charging and each plays a large factor in how long it takes to charge. For instance, if two vehicles with similar size batteries are charging side by side at a high-power DC charging station, but one can only accept 50 kW of DC power and the other 250 kW, then the latter will charge much faster than the former.

Charging output of the charging station

The different output of the charging station plays a large factor in how long it takes to charge an EV. The higher the kW output on a charging station, the faster it will charge (presuming that your new vehicle accepts the higher power output).

State of charge

It might sound obvious, but, how much charge you have in your vehicle when you begin your charging session also plays a part in how long it takes to charge. The same as when you’re putting fuel in a traditional vehicle, depending on whether you have half a tank or are almost empty, how long it takes to charge will differ.

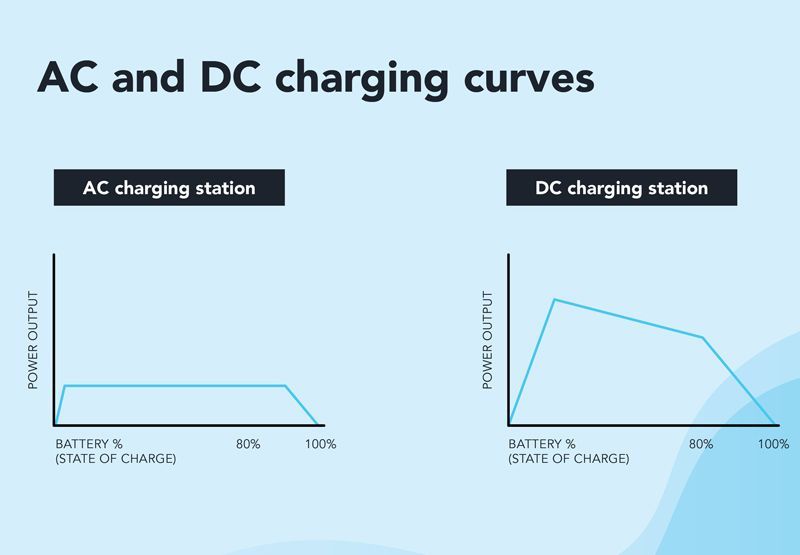

The DC charging curve

With AC charging, the power flow to an EV is flat (meaning that it will charge at the same speed from 0-100 percent full), whereas with DC charging, the EV’s battery initially accepts a quicker flow of power, and then slowly starts to ask for less power as it begins to fill up. The reason for this is simple: the EV doesn’t want to damage the battery with a surge of power. As a result, with a DC or Level 3 charger, the initial phase of charging (to 80 percent full) goes quicker than the last 20 percent (which may take roughly the same amount of time as the first 80 percent).

Weather conditions

Another factor that will determine charging times is the weather. As batteries operate more efficiently in warm weather—say between 20–25°C—it will take longer to charge a vehicle in colder or extremely warm weather.

6. How much does it cost to charge an electric car?

Cost to charge electric car

Just like with how long it takes to charge an EV, the cost of charging depends on multiple variables including where you charge it, or the type of vehicle you drive.

Before we get into it in greater detail, here are the approximate costs of charging four different size vehicles (with battery packs from small to large), at three different types of charging stations, so that you can get a ballpark idea of charging costs for your new electric car.

Home charging: £4 - £18

Public charging: £8 - £31

Fast charging: £12 - £49

Average cost to charge electric car

Important: Prices for each charging segment are approximations based on our experience and do not represent a real-life situation. These calculations are based on a median guesstimate charging tariff and represent the cost to charge from zero to 100 percent.

Size of the electric car battery

The first thing you need to know when calculating how much it costs to charge your EV is the size of your battery. As shown above, the larger the battery, the more kWhs it can store; the more kWhs it can store, the more power it takes to fill the battery; the more power it takes, the more you have to pay to fill your battery. Simple, right?

Vehicles with a larger battery cost more to charge, but can often drive further on a single charge too.

For instance, a Porsche Taycan with a battery of 90 kWh costs about £17.10 to fully charge at home but has a range of roughly 195 miles. However, a Fiat 500e with a much smaller battery of 24 kWh, whilst costing a fraction of the price to charge, its range is only 111 miles.

Once you know how big your new electric car's battery is (measured in kWh), you can make an approximation of how much it costs to charge at different charging stations. The three main options are at home, at public locations, or at fast-charging points.

EV home charging cost

Charging from home is the cheapest way to charge your new car. As there is no middle man standing in between you and the cost of energy, you’ll always get the cheapest rate available to consumers at home.

Electric car electric bill

How much it costs to charge at home is an easy equation. Simply take your latest energy bill and find the price per kWh you pay at home and multiply it by the size of your battery.

On average, residential prices for electricity vary from around 18.2p on the low end and 20.2p on the higher end in the UK. At the time of writing this guide, we’ve taken some averages around the world from Nimblefins (UK), the European Union (EU) and Energybot (US):

• United Kingdom: £0.19 per kWh
• European Union: €0.23 per kWh
• United States: $0.10 per kWh

That means if you’ve just bought a Tesla Model S with a 75 kWh battery, and you pay £0.19 for electricity, you’ll be set back a whopping £14.25 to fully charge your EV.

However, this calculation is only meant as an example as it doesn’t take into account the battery’s current state of charge, the state of your battery in general, weather conditions, or the type of charger.

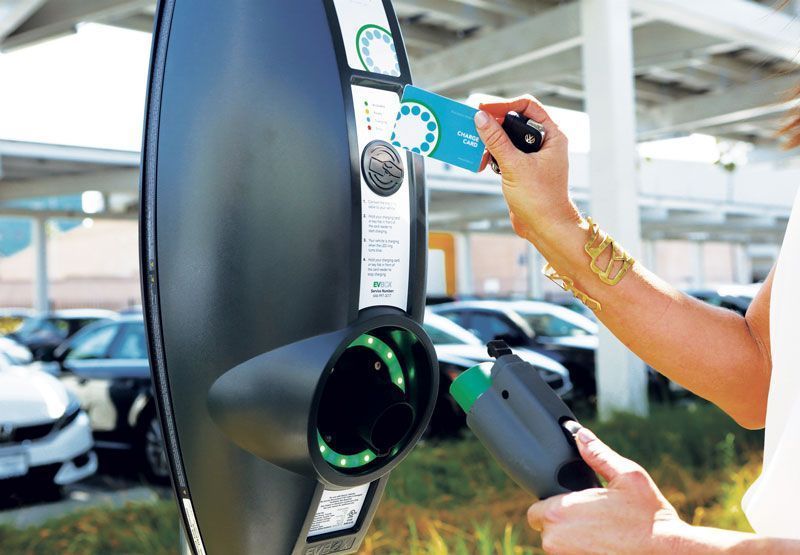

Cost of charging electric car at a public station

Public charging stations can range from business office chargers to on-street charging points, and commercial parking stations to shopping centres, restaurants, and hotels. The truth is that today there is no shortage of businesses, big or small, investing in EV charging. At the same time, cities and governments are investing in EV charging infrastructure to empower their sustainable transformations. When you put both together, you’ve got charging points springing up all over the place.

Public charging stations can be either Level 2 or Level 3 (AC or DC), but, for simplicity, we’ve split them into two categories and will discuss them separately. As there’s a middle man providing the service, public charging points usually have a marked-up price in comparison to home charging. How much it costs to charge completely depends on how much the provider charges you for the service.

In some cases, like workplaces and offices, the provider is also an employer and will provide EV charging as an employee benefit and may charge less, or even allow employees to charge for free. Others, like parking facilities and shopping centres, will take the price of electricity and mark it up to make a profit on it, like any other service they offer. Some, like restaurants and hotels, may use EV charging as a way to advertise and attract new customers.

Just like the diversity in how much it costs, how these providers will calculate costs also differs greatly. Below is a list of the four most common ways to calculate charging tariffs.

• Connection fee: a fixed amount for each session.
• Energy fee: a certain price per kWh used during the charging session.
• Time fee: Cost per minute or hour.
• Service fee: A mark-up for providing the service.

For example, a charging provider might charge £0.34 per kW and a £2 connection fee. So, if you’re charging a 75 kWh vehicle like a Tesla Model S, it will cost you £27.50 to fully charge. As we said before, how much it costs completely depends on the provider. That being said, however, public charging is often faster than charging at home, and still cheaper than fuel.

Cost to charge electric car at a DC fast charger

Level 3 or DC charging is the fastest way to charge an EV. Depending on the power output and your vehicle’s fast charging capabilities, it will likely take somewhere between seven minutes and one hour to charge your new electric car up to 80 percent full. These speeds make DC charging stations perfect for on-the-go locations like motorway services, petrol stations, or supermarkets.

However, DC charging stations are also the most expensive. To enable these charging times, DC charging stations have to deliver serious amounts of power to a vehicle’s battery—think between 50 and 350 kW rather than 22 kW, the maximum output for most AC charging stations.

DC charging infrastructure is far more expensive to buy and run, and as a result, charging service providers charge not only for convenience but also for the additional expenses incurred by the provider. In some cases, these providers can ask double, or even triple, the cost per kWh—making the costs here similar to the cost of filling up your tank with fossil fuels. Typical costs can sit around £0.54 per kW. This means that to fully charge the same Tesla Model S as above, it would be closer to £40.50 for a full battery. As such, DC fast charging is a convenience that cost-wise comes closest to the cost you’re used to paying for petrol.

Cost of electric vs cost of fuel

One of the questions we hear potential EV drivers ask us all the time is, are electric cars cheaper to charge than filling up a conventional fossil-fuel vehicle? While, as you may have guessed by now, the answer to that question is probably, yes.

Regardless of charging costs for individual sessions, when you take into account that most EV drivers charge at home, occasionally topping up when shopping or at the workplace and reserving fast charging for long-distance journeys; EV charging is usually a lot cheaper than filling a car with petrol or diesel.

7. How far can an electric car go?

Electric car range

Another question which many potential EV drivers want to know before they buy an electric car is, “how far will I be able to drive with my new car?” Or should we say, the real question on everyone’s mind is, “Am I going to run out of charge on a long-distance journey?” We get it, it’s one of the main differences with driving an ICE vehicle and it’s a question on everyone’s mind

In the early days of the electric mobility revolution, range anxiety gripped many potential EV drivers. And for good reason: Ten years ago, the best-selling electric car, the Nissan LEAF, had a maximum range of only 109 miles. Today, the median range of EVs is nearly more than double that at 195 miles and many EVs have a range of above 300 miles; plenty for even the longer daily urban commutes.

This increase in range, together with the dramatic increase in charging infrastructure, is making range anxiety a thing of the past.

Shortest: 84 miles (135 km)

Average: 194 miles (313 km)

Longest: 396 miles (637 km)

Should I charge my electric car every night?

Most EV drivers won’t even have to charge their car daily. Did you know that in the UK, the average Brit drives roughly 20 miles a day, which means that most of our daily commutes won’t even come close to reaching an EV's maximum range, regardless of the make or model, even back in 2010. For a more detailed overview of the range of any specific model, you can have a look at our electric car specifications page.

8. How long do electric car batteries last?

Car battery life

As the battery is the most expensive component of an electric vehicle, it’s only understandable that you want to know how long your new EV’s battery will last.

Just like all lithium-ion batteries, and the vast majority of technology in general, EV batteries degrade slowly over time.

Rather than just stopping altogether, which is unlikely, a battery will gradually lose capacity with an average decline across all electric vehicles at around 2.3 percent per year.

This means that if you purchase an electric car today with a 150 miles range, after five years the battery will have lost 17 miles of accessible range. Many manufacturers will also give a warranty on their battery which is usually between five and ten years, and some up to 62,000 miles.

How long should a car battery last?

After 10 or 20 years, you may need to replace your electric car's battery. However, there are ways to increase the longevity of your battery and as electric vehicles require far less maintenance than their fossil-fuel counterparts, these costs may even out in the long run.

9. EV charging cables and plugs

EV charging connector types explained

Many of the sections above have answered questions that you may or may not have had before purchasing your new electric car. However, we can take a guess that you probably haven’t even thought about charging cables and plugs. While this is not the sexiest topic—unless you're an engineer—the world of EV cables and plugs is as diverse as it is complex.

Due to the infancy of electric vehicles, there’s no universal standard for charging. As a result, just like Apple has one charging cord and Samsung has another, many different EV manufacturers use different charging technology. To get a detailed overview of a specific model, our electric car specifications page shows the type of plug types and other specifications per car.

EV charging cables

Charging cables come in four modes. These modes do not necessarily correlate to the “level” of charging.

Mode 1

Mode 1 charging cables are not used to charge electric cars. This cable is only used for light electric vehicles like e-bikes and scooters.

Mode 2

When you purchase an electric car, it will typically come with what’s known as a Mode 2 charging cable. You can plug this cable into your household outlet and use it to charge your vehicle with a maximum power output of 2.3 kW.

Mode 3

A Mode 3 charging cable connects your vehicle to a dedicated EV charging station and is considered to be the most common for AC charging.

Mode 4

Mode 4 charging cables are used with fast-charging. These cables are designed to transfer the higher DC (level 3) charging power, must be connected to a charging point, and are often even liquid-cooled to deal with the heat.

EV charging plug types

The charging plug is a connector that you insert into the charging socket of an electric car. These plugs can differ based on power output, the make of the vehicle, and the country the car was manufactured in. As AC differs from DC charging, these plugs (and their receiving sockets) also differ.

AC charging plugs

Plug type	Design	Power output*	Locations
Type 1		Up to 7.4 kW	Japan and North America
Type 2		Up to 22 kW for private charging Up to 43 kW for public charging	Europe and the rest of the world
GB/T		Up to 7.4 kW	China

*These numbers represent the maximum power output that a plug can deliver at the time of writing this article. The numbers do not reflect actual power outputs as this is also dependent on the charging station, charging cable, and the receptive vehicle.

DC charging plugs

Plug Type	Design	Power output*	Locations
CCS1		Up to 350 kW	North America
CCS2		Up to 350 kW	Europe
CHAdeMO		Up to 200 kW	Japan
GB/T		Up to 237.5 kW	China

*These numbers represent the maximum power output that a plug can deliver at the time of writing this article. The numbers do not reflect actual power outputs as this is also dependent on the charging station, charging cable, and the receptive vehicle.
